JYD-1024SG Ultrasonic Washing Machine Industrial Ultrasonic Single Tank Cleaner Ultrasonic Cleaning Machine Manufacturer

FOB Reference Price:Get Latest Price
$1,800.00 - $2,000.00 / Sets | 1 Set/Sets the ultrasonic washing machine (Min. Order)
Model Number:
JYD-1024SG
Report Suspicious Activity
Overview
Quick Details
Machine Type:
Industrial Ultrasonic Cleaner
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JYD
Feature:
Drip-proof,alkali resistant
Fuel:
Electric
Certification:
CE, RoHS, FCC,PSE,SAA
Use:
engineer parts cleaning
Cleaning Process:
Hot Water Cleaning
Cleaning Type:
Industrial Ultrasonic Cleaner
Industry Used:
Pharmaceutical Cleaning
Material:
Metal / Coil, SUS 304L / SUS 316L
Power(W):
1200W
Dimension(L*W*H):
550*400*400mm (customizable)
Products name:
industrial ultrasonic single tank cleaner
Capacity:
96L
Frequency:
17/20/25/33/40/68/80/100/132/170/200Khz
Heating power:
3000W
Max temperature:
20-100℃
Voltge:
AC 220V/110V±10%(50/60KHz)
Ultrasonic Power:
1200w
Application:
Industrial cleaning
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
500 Unit/Units per Month ultrasonic washing machine
Packaging & Delivery
Packaging Details
Wooden case.
Port
shenzhen

JYD-1024SG Ultrasonic Washing Machine Industrial Ultrasonic Single Tank

Cleaner Ultrasonic Cleaning Machine Manufacturer

Product Description



Description:

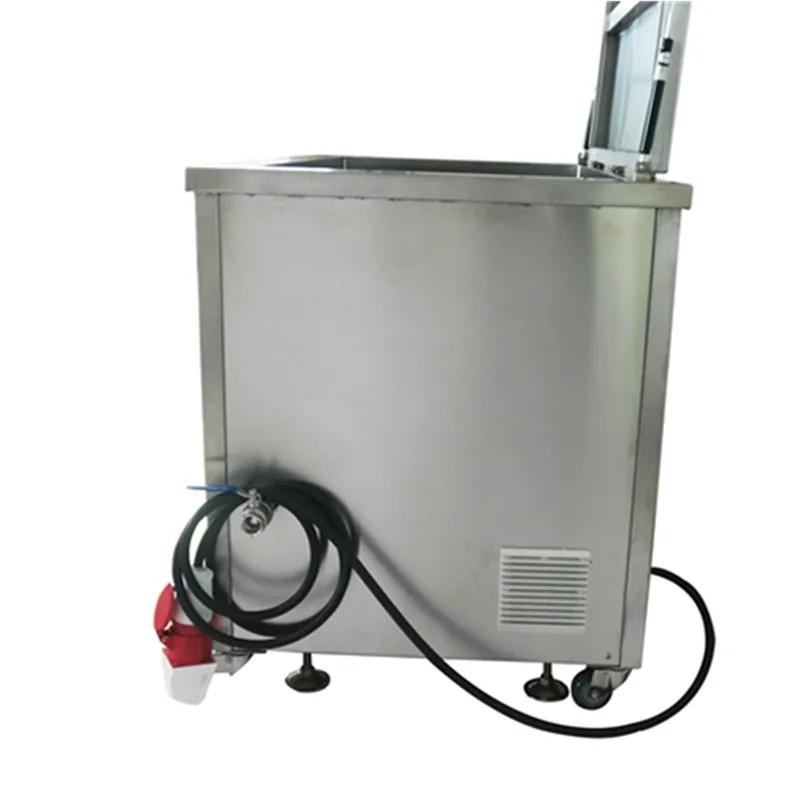

The single tank(1-piece) ultrasonic cleaner can be set up to clean parts as well as a multiple tank at far less cost. This cleaner features a fully integrated ultrasonic generator and cleaning tank in a single enclosure. This unit fits perfectly into a busy power sports or automotive repair shop needing a larger, tougher system for stripping oil, carbon and corrosion from small engine cases and other parts, but don’t have the room for a full-size unit.  It’s used primarily for cleaning small parts, such as coating parts, clock and watch parts, mechanical and hardware parts, spinneret filtration assemblies, semiconductor wafers, optical lenses, spectacle frames, jewelries, glassware and many others.



Features:



1.Automatic frequency tracking generator MCU-SWEEP drive, modular design of the whole machine, easy to operation, convenience to maintenance



2.Digital controlled Dispaly, one-button to start degassing, can quick remove the air in water,and have strong ultrasonic effect,



3.20-100 ℃ heating temperature adjustable, 0-100% ultrasonic power adjustable, cleaning time can be adjusted in minutes or hours to meet the cleaning requirements of different products, constant power output, ultrasonic effect homogeneous and strong,



4.high Q ultrasonic transducers, high strength glue bonding,have higher ultrasonic transfer efficiency and longer service life, the tank body is welded by SUS304 2.0-2.5mm, the vibration surface is plated with environmental protection chromium treatment, when the machine has no liquid level protection, the ultrasonic work will have abnormal alarm function



5.Past 2500V high voltage test, strict production process and aging process,have mute cover/ 304 stainless steel washing basket, etc.and certificated by CE/ROSH/FCC



Application:


Golf club: Golf clubs,irons,grips;
Automotive: engine block,engine parts,fuel injector, carburetor,spark plug and other target car parts.
Others: printing, marine, medical, pharmaceutical, electroplating, disk drive components, engineering and weapons industries.







NameIndustrial ultrasonic single tank cleaner
Frequency17/20/25/33/40/68/80/100/132/170/200Khz.(customizable)
Max Temperature20-100℃
MaterialSUS304 stainless steel, thickness 2.0-3.0mm or SUS316L, thickness 2.0-3.0mm
VoltageAC 220V/110V±10%(50/60KHz)



ModelCapacity(L)Ultrasonic PowerHeating PowerTank Size (customizable)
JYD-1012SG36600W1500W500*300*250mm
JYD-1018SG61900W2000W500*350*350mm
JYD-1024SG881200W3000W550*400*400mm
JYD-1030SG1081500W3000W650*450*400mm
JYD-1036SG1471800W6000W650*500*450mm
JYD-1048SG1752400W6000W700*550*500mm
JYD-1060SG2403000W9000W800*600*500mm
JYD-1072SG3003600W9000W1000*600*500mm



Company Information

Certifications
FAQ

1. Q. How do I get the best ultrasonic cleaning?

Choosing the proper cleaning solution is one of the most important decisions, as well as cleaning at the right temperature, cleaning time, and choosing the suitable size and type of ultrasonic cleaner.



2. Q. Can ultrasonic cleaning damage my parts?

Ultrasonic cleaning is considered, safe for most parts. Although the effects of thousands of air bubble implosions per second is very powerful, the cleaning process is safe since the energy is localized at the microscopic level.



3. Q: What frequency is better for my parts?

A: Frequency is suggested based on pollutants in the objects. 28kHz frequency is stronger, better for car/motor/truck/vessel parts clean(remove oils, grease, pastes, etc. ) 40kHz is better for pcb boards, electronic parts, etc. Higher precision goods, higher frequency.



4. Q: Are you trading company or manufacturer ?

A: We are manufacturer.



5. Q: How about terms of payment?

A: T/T, PayPal, Western Union, Money Gram, L/C, etc.
